產品描述
崑山德旭鼎進出口貿易有限公司為意大利UNIVER電磁閥中國代理
ABOUT UNIVER® SERIES A
15mm Microvalves
These valves are among the smallest 2 or 3-way solenoid valves due to their compact size. Their body is made of thermoformed technopolymer. The interchangeable coil (UO5) is fixed to the valve body with a spring clip and can be orientated in 90° increments. The response times can be considerably improved with the support of command electronics. Valves are made of a thermoplastic material, with internal parts in stainless steel and brass, and seals are made of nitrilic rubber. They can be mounted on single or multiple sub-bases.
ADDITIONAL INFORMATION
Technical Characteristics
Body: Thermoplastic, stainless steel and brass internals
Operating pressure: 44-131 psi
Ambient temperature: 23-113°F
Fluid: Filtered air 10µm
Fluid temperature: 32-131°F
Nominal diameter: 1.2-1.5 mm
Flow rate: 26-38 NI/min.
Cycles: 2700/min. (max.)
Response time: 11 m/s
Coils: Series DD (U05)
Electrical connection: Miniature connectors
Power: 1.5 W (1.35 with brightness LED
UNIVER-GROUP氣動控制系統，具有易操作、經濟、安全之特性，在整個生產過程中，氣動控制將可取代人手、節省能源、增加產量，提高產品的競爭力。
時至今日，全球的工業發展可謂一日千里，單從意大利輸出產品及提供技術支援，根本無法滿足客戶的需求。Univer的全球銷售策略是，把整個世界市場看成為單一市場，全世界已有10多個直屬分公司或合資機構，並設立了70多個分銷點。
Univer成立于1971年，其氣動系統產品廣氾應用於陶瓷、木工、汽車、電子和制衣等機械工業。

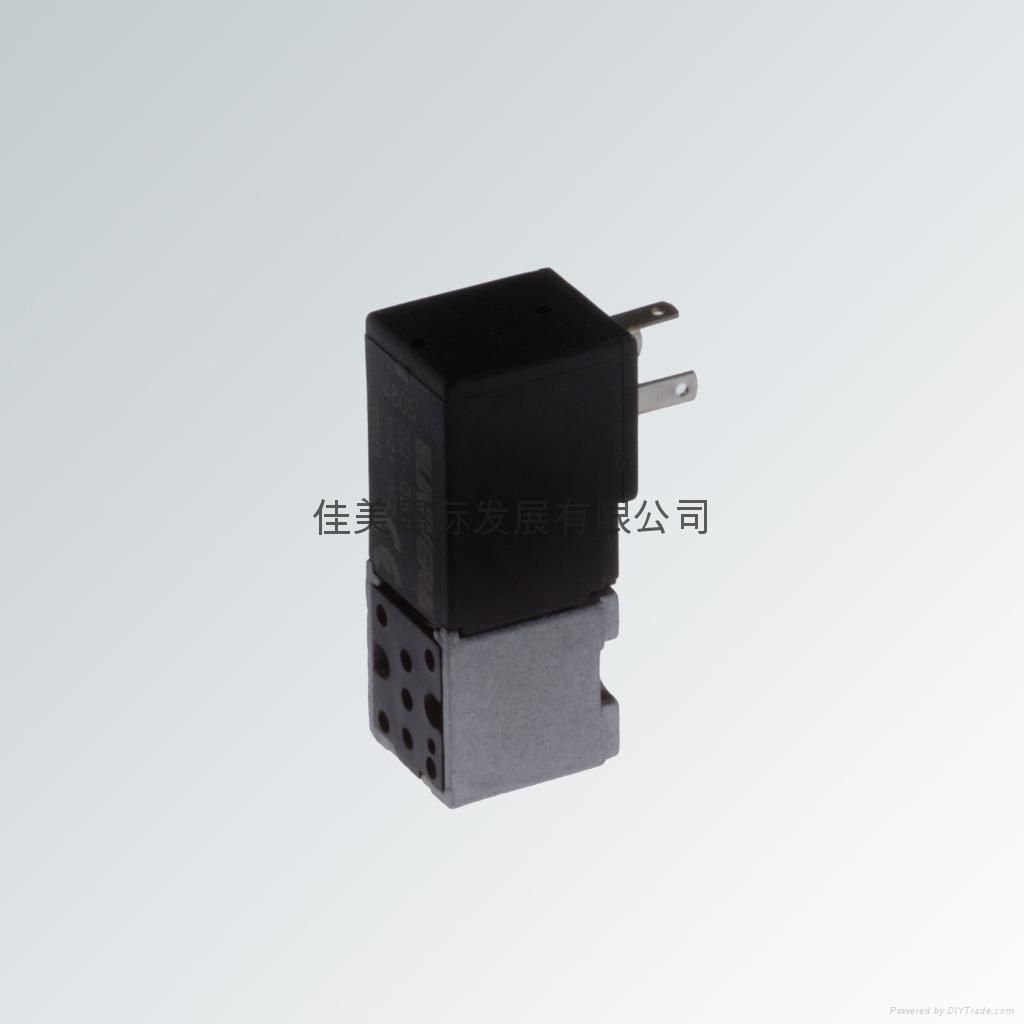

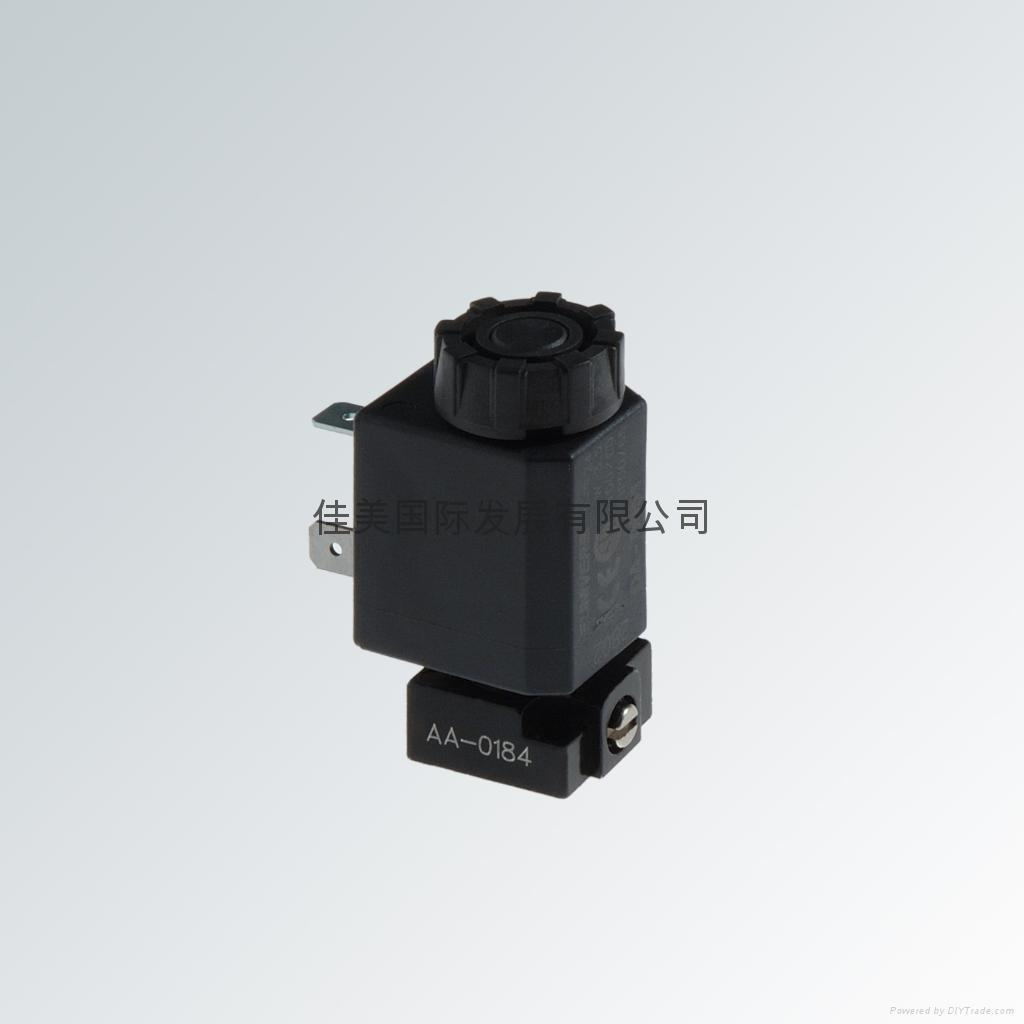

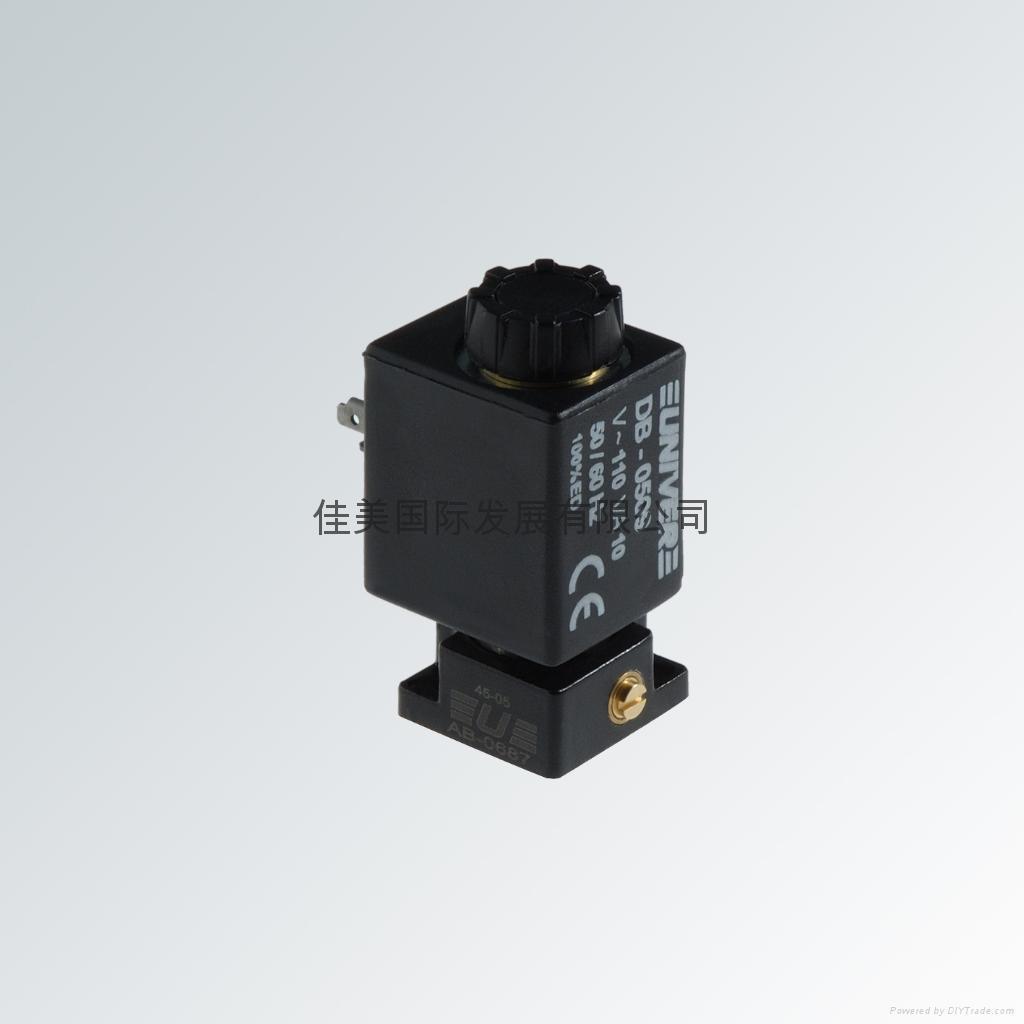

產品圖片
