Model No.︰0.25 系列
Brand Name︰DEKA
Country of Origin︰Italy
Unit Price︰-
Minimum Order︰1 pce

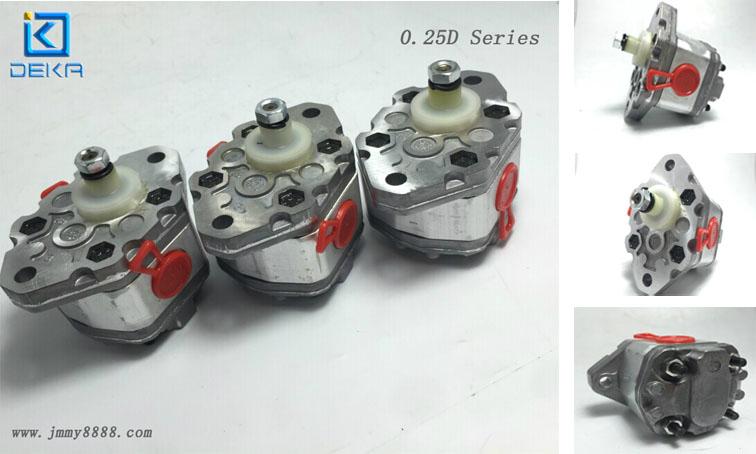

0.25 Series
Temperature range: -15°C ~ ̴ +80°C ( For V version models:-10°C~ +120°C)
Rotation direction: D= Clockwise S= Anticlockwise R=Reversible rotation
Body: Aluminum
Flange and cover: Aluminum
Viscosity range: From 6 to 500cSt
Fluids: Best performance with standard mineral oils
M10x1 threads depth 9mm
G1/4 threads depth 9mm
Types:
0.25D18
0.25D24
0.25D30
0.25D36
0.25D48
0.25D60
Datas:
|
Type |
Displacement cm3/r |
Max Pressure bar |
Max Speed rpm |
|
0.25D18 |
0.19 |
230 |
7000 |
|
0.25D24 |
0.26 |
230 |
7000 |
|
0.25D30 |
0.32 |
230 |
7000 |
|
0.25D36 |
0.38 |
230 |
7000 |
|
0.25D48 |
0.51 |
230 |
7000 |
|
0.25D60 |
0.64 |
230 |
7000 |
Advantages: Low noise level, low pulsation level, compact dimensions, low weight and power ratio
The pumps feature versatility strength long useful life. External gear pumps are the most popular pumps used in modern hydraulic systems.
They work under heavy operating conditions and transmit high hydraulic power.
