DEKA Gear Pump ALP1 Series

DEKA Gear Pump ALP1 Series

Model No.︰ALP1 Series

Brand Name︰DEKA

Country of Origin︰Italy

Unit Price︰-

Minimum Order︰-

Inquire Now

Product Description

ALP1 Series

Temperature range: -15°C ~ ̴ +80°C

Rotation direction: D= Clockwise   S= Anticlockwise    R=Bi-directional

Body: Aluminum

Flange and cover: Aluminum

Viscosity range: From 6 to 500cSt

Standard ports: M6 threads depth 13mm

Types:

ALP1-D-2

ALP1-D-3

ALP1-D-4

ALP1-D-5

ALP1-D-6

ALP1-D-7

ALP1-D-9

ALP1-D-11

ALP1-D-13

A;P1-D-16

ALP1-D-20



Datas:

    Type

 Displacement

     cm3/r

Pressure

     bar

  Max Speed

     rpm

ALP1-D-2

1.4

250

6000

ALP1-D-3

2.1

250

6000

ALP1-D-4

2.8

250

5000

ALP1-D-5

3.5

250

5000

ALP1-D-6

4.1

250

4000

ALP1-D-7

5.2

230

4000

ALP1-D-9

6.2

230

3800

ALP1-D-11

7.6

200

3200

ALP1-D-13

9.3

180

2600

A;P1-D-16

11.0

170

2200

ALP1-D-20

13.8

150

1800



Advantages: low noise level, low pulsation level, compact dimensions, low weight and power ratio

The pumps feature versatility strength long useful life. External gear pumps are the most popular pumps used in modern hydraulic systems.

They work under heavy operating conditions and transmit high hydraulic power.

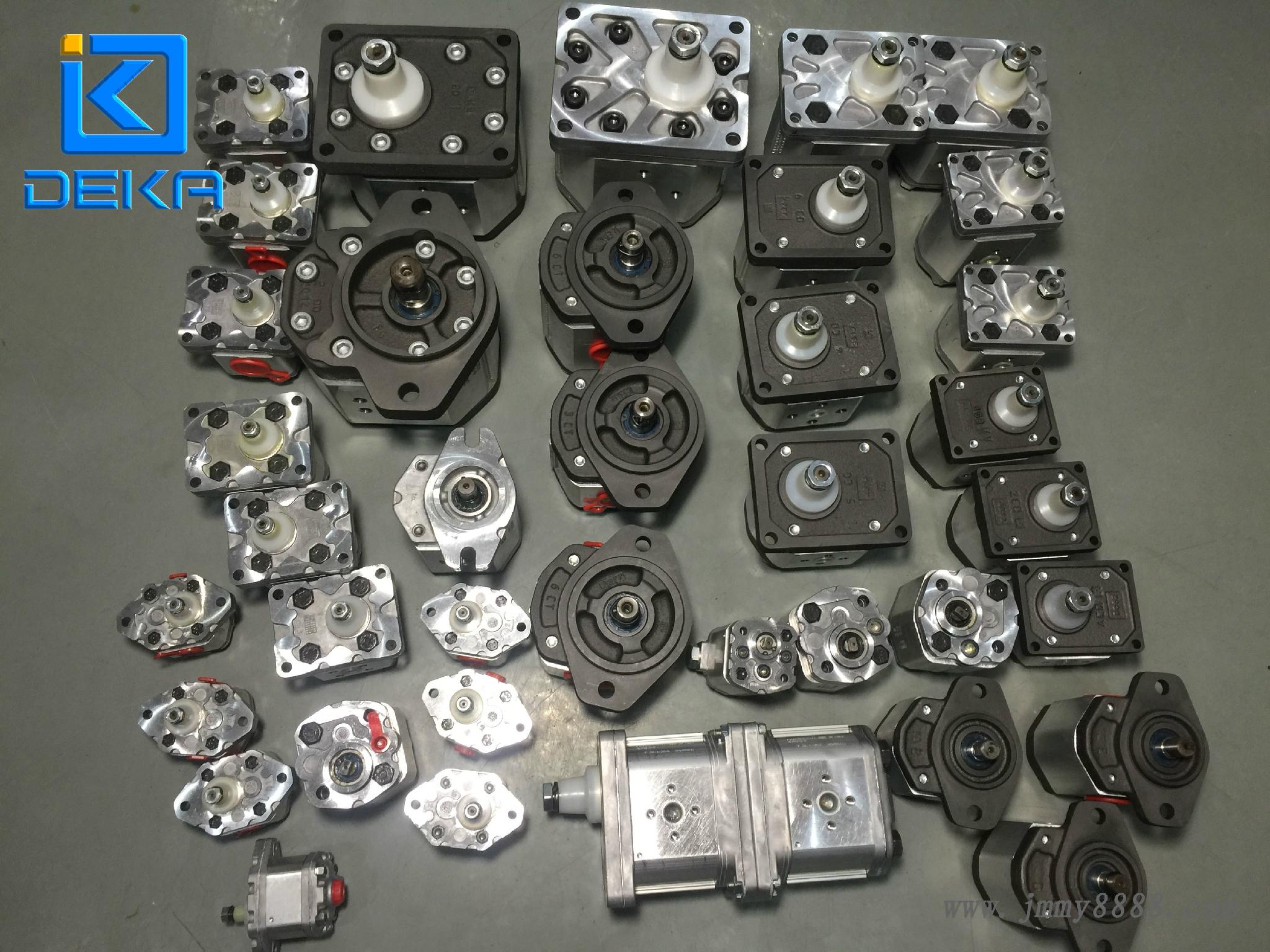

Product Image
