Product Description

ALP3 Series

Temperature range: -15°C ~ ̴ +80°C

Rotation direction: D= Clockwise   S= Anticlockwise   R=Bi-directional

Body: Aluminum

Flange and cover: Aluminum

Viscosity range: From 6 to 500cSt

Standard ports: M10 threads depth 19mm

Types:

ALP3-D-30       ALP3-S-30

ALP3-D-33       ALP3-S-33

ALP3-D-40       ALP3-S-40

ALP3-D-50       ALP3-S-50

ALP3-D-60       ALP3-S-60

ALP3-D-66       ALP3-S-66

ALP3-D-80       ALP3-S-80

ALP3-D-94       ALP3-S-94

ALP3-D-110      ALP3-S-110

ALP3-D-120       ALP3-S-120

ALP3-D-135       ALP3-S-135

Data:

Type	Type	Displacement cm3/r	Pressure bar	Max Speed rpm
ALP3-D-30	ALP3-S-30	20	230	3500
ALP3-D-33	ALP3-S-33	22	230	3500
ALP3-D-40	ALP3-S-40	26	230	3000
ALP3-D-50	ALP3-S-50	33	230	3000
ALP3-D-60	ALP3-S-60	39	220	3000
ALP3-D-66	ALP3-S-66	44	210	2800
ALP3-D-80	ALP3-S-80	52	200	2400
ALP3-D-94	ALP3-S-94	61	190	2800
ALP3-D-110	ALP3-S-110	71	170	2500
ALP3-D-120	ALP3-S-120	8	160	2300
ALP3-D-135	ALP3-S-135	87	140	2000



Advantages: low noise level, low pulsation level, compact dimensions, low weight and power ratio

The pumps feature versatility strength long useful life. External gear pumps are the most popular pumps used in modern hydraulic systems.

They work under heavy operating conditions and transmit high hydraulic power.

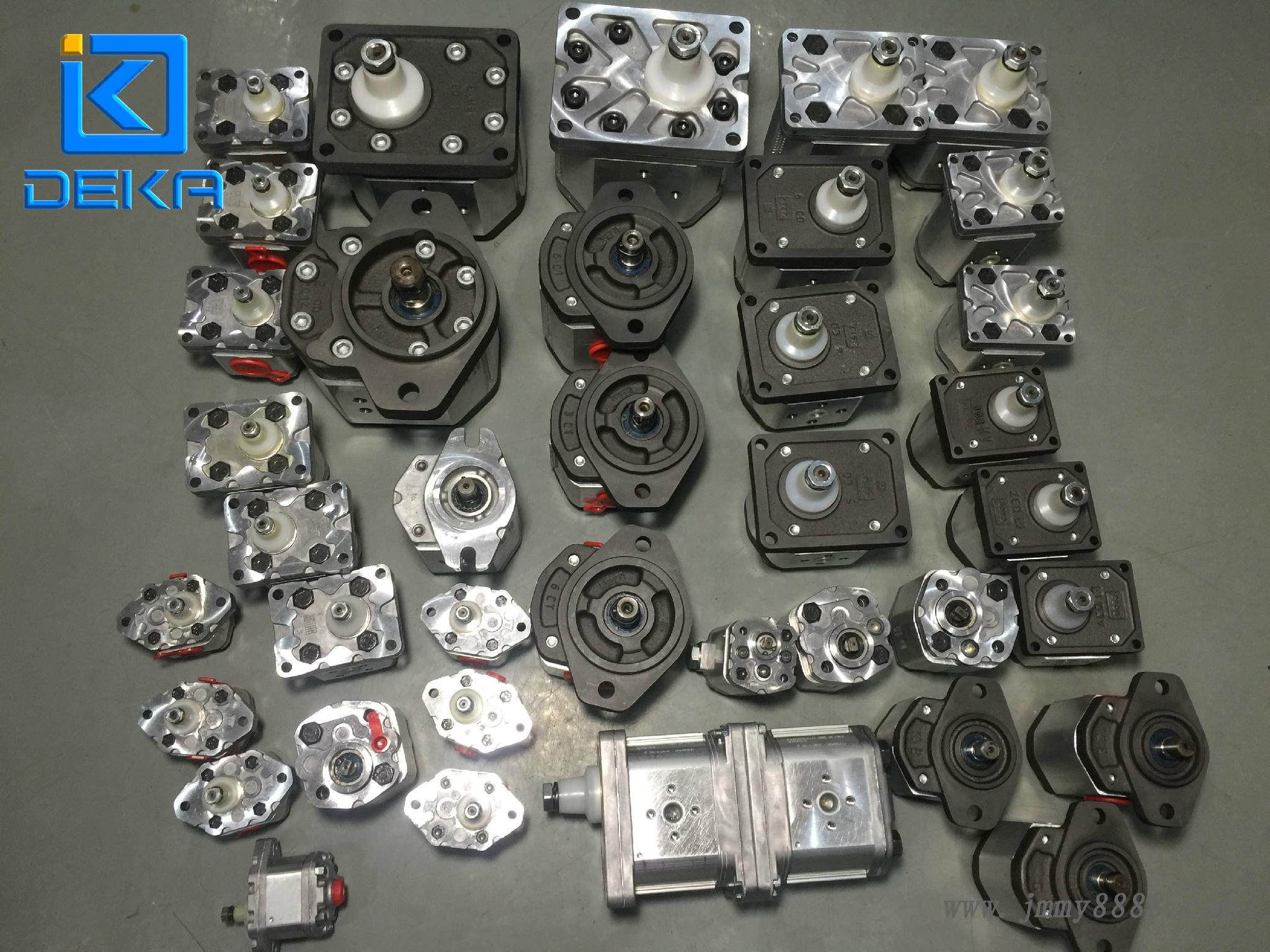

Product Image
